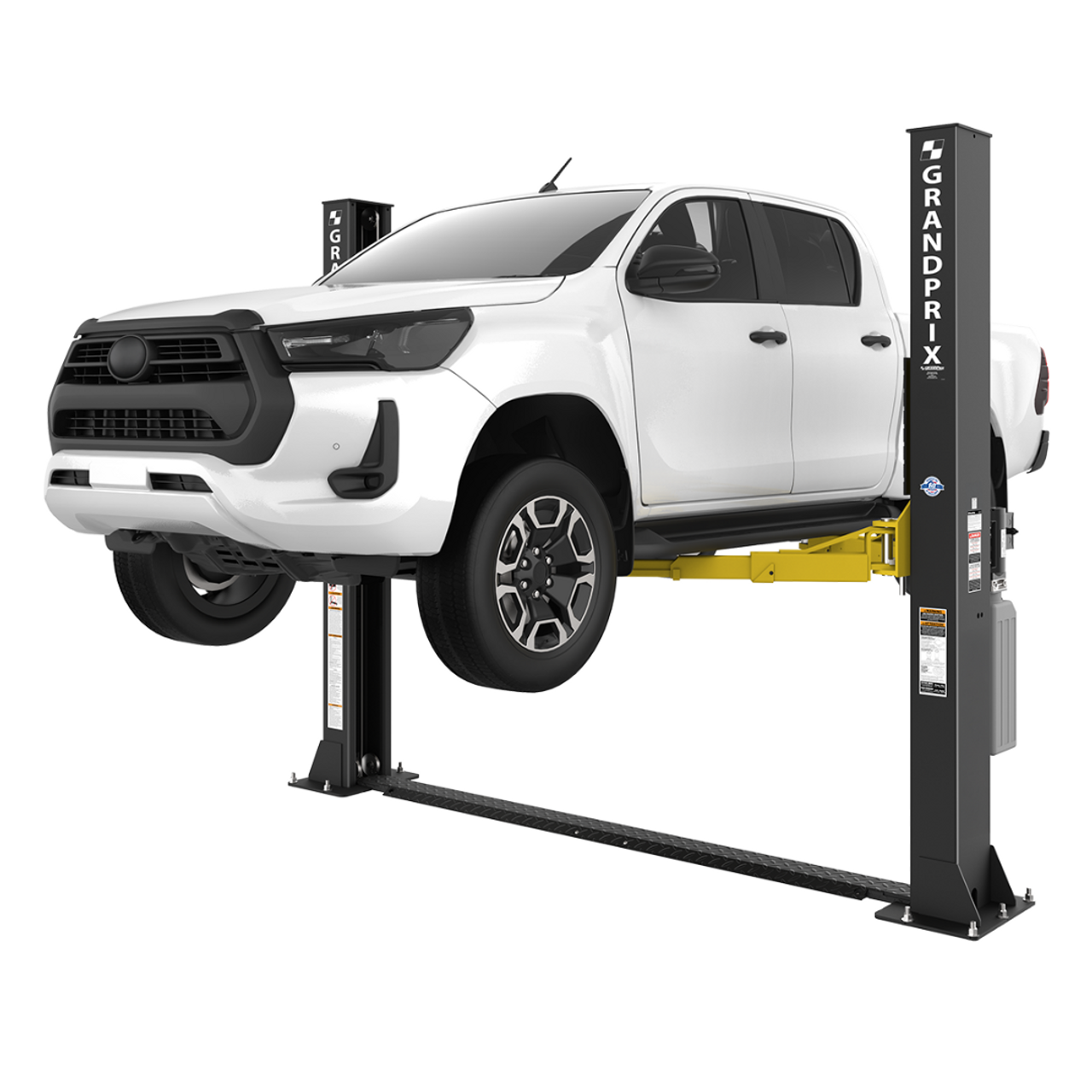

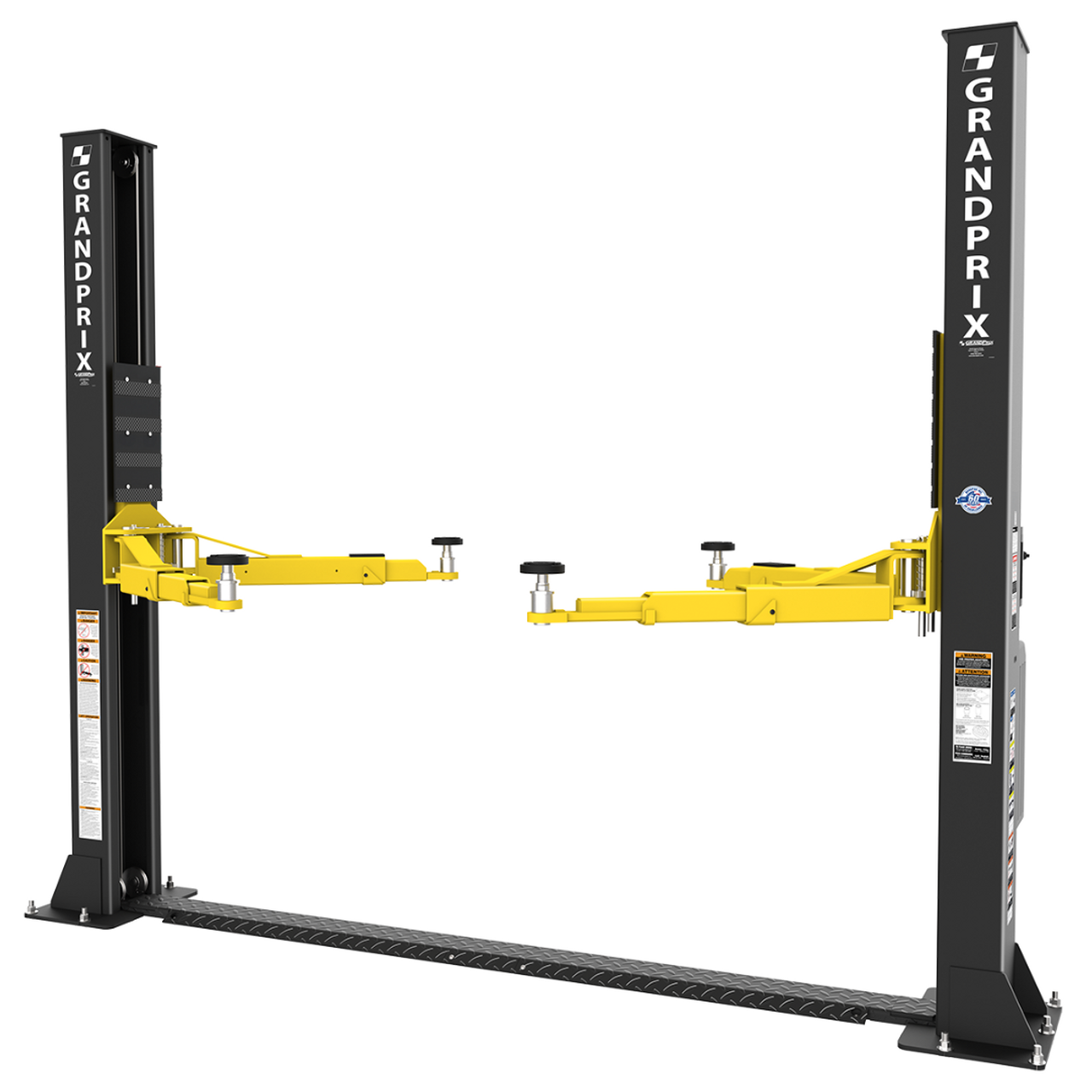

Bendpak GrandPrix GP-9LC 9,000 Lb. Capacity 2 Post Lift
The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do.
Features
- 9,000-lb. lifting capacity.
- Symmetric and asymmetric arm design for enhanced versatility.

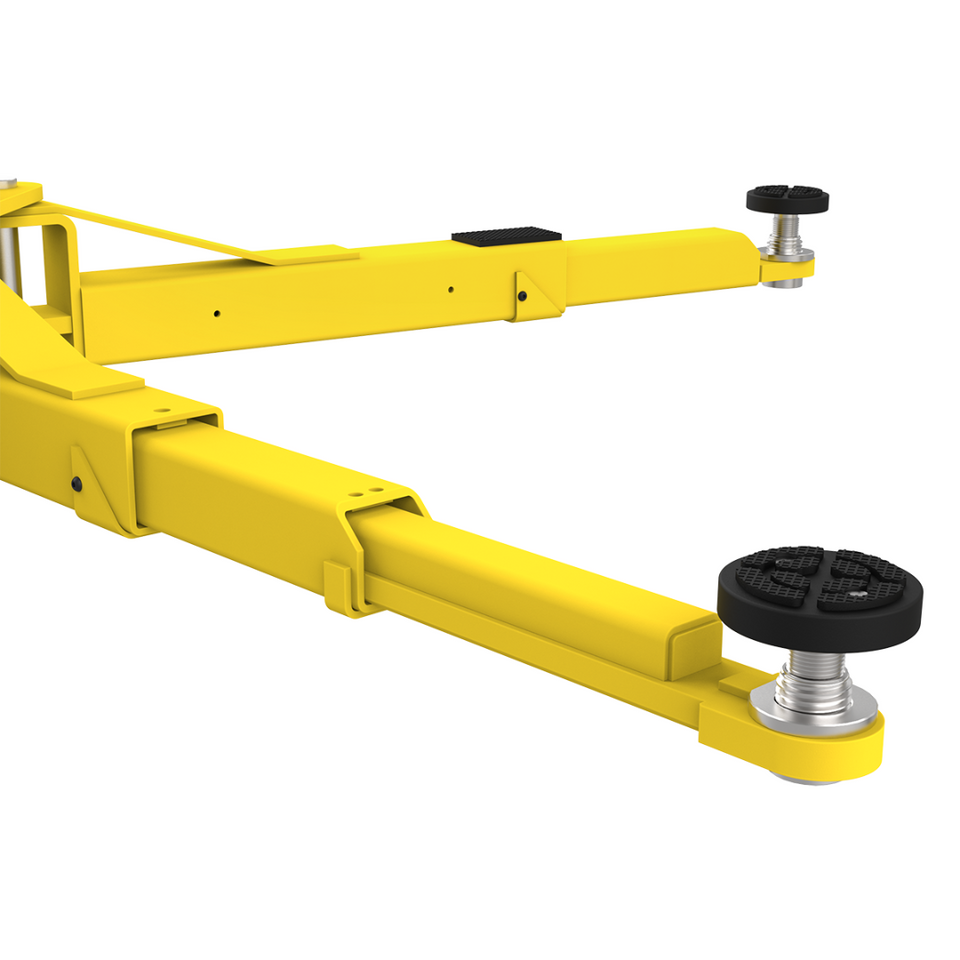

- Triple-telescoping front arms & dual-stage extended rear arms.

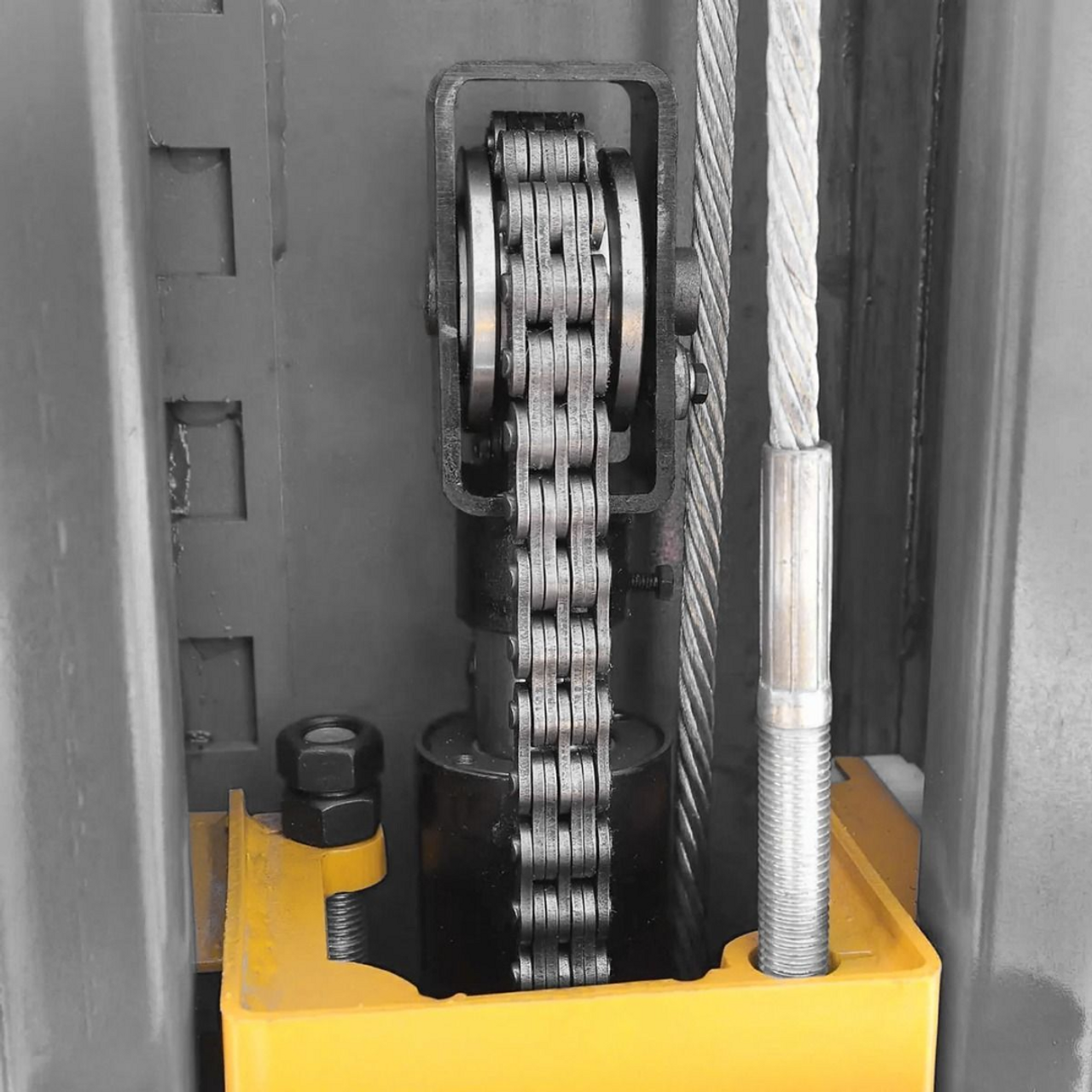

- Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability.
- Heavy-duty 6″ x 6″ tubular steel carriage for maximum strength.
- Electric-hydraulic power system for effortless operation.

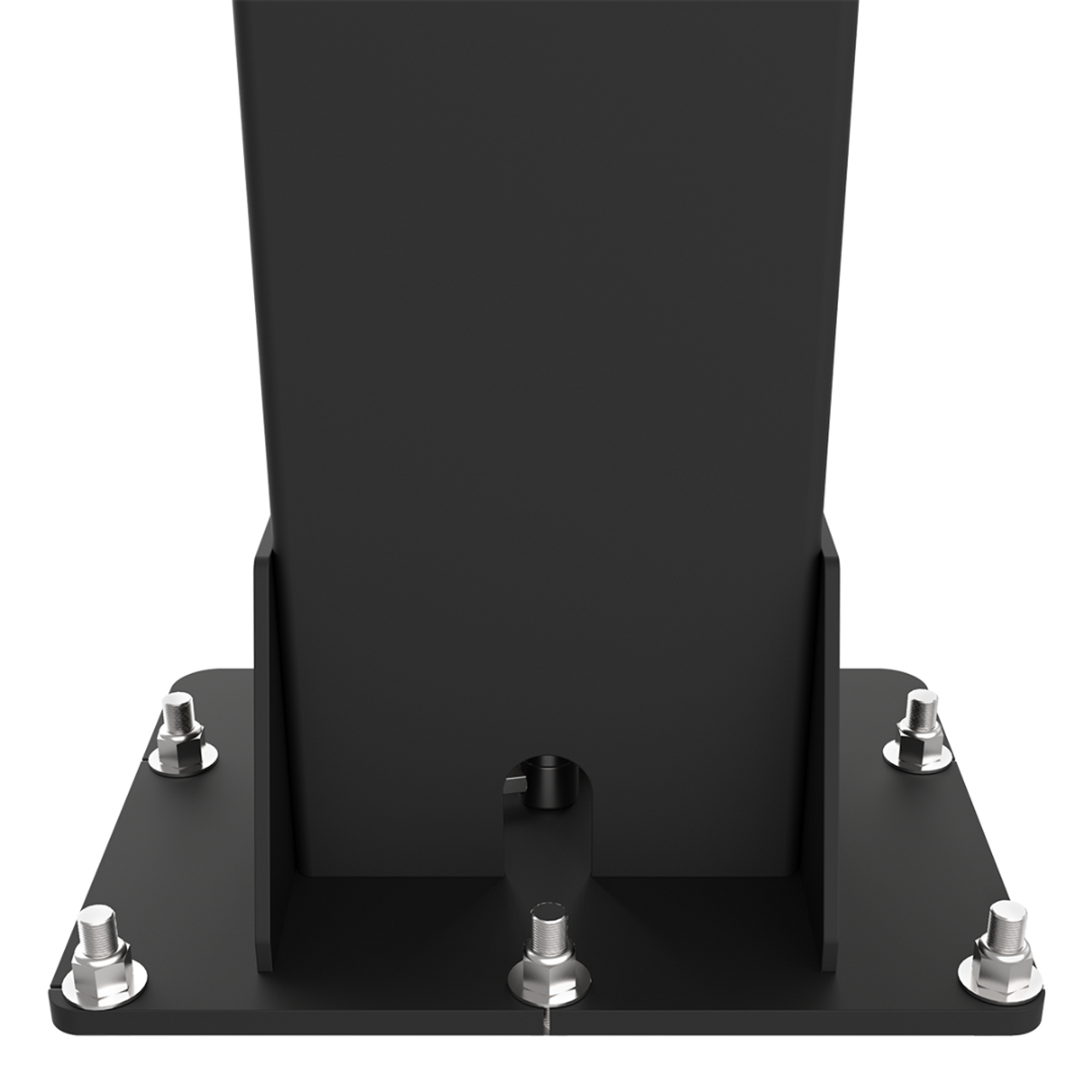

- Oversized 20.5″ x 15.5″ base plate for increased stability.
- Self-lubricating UHMW polyethylene guide blocks for long-lasting durability.
- Safety locks in each column spaced every 3 inches.

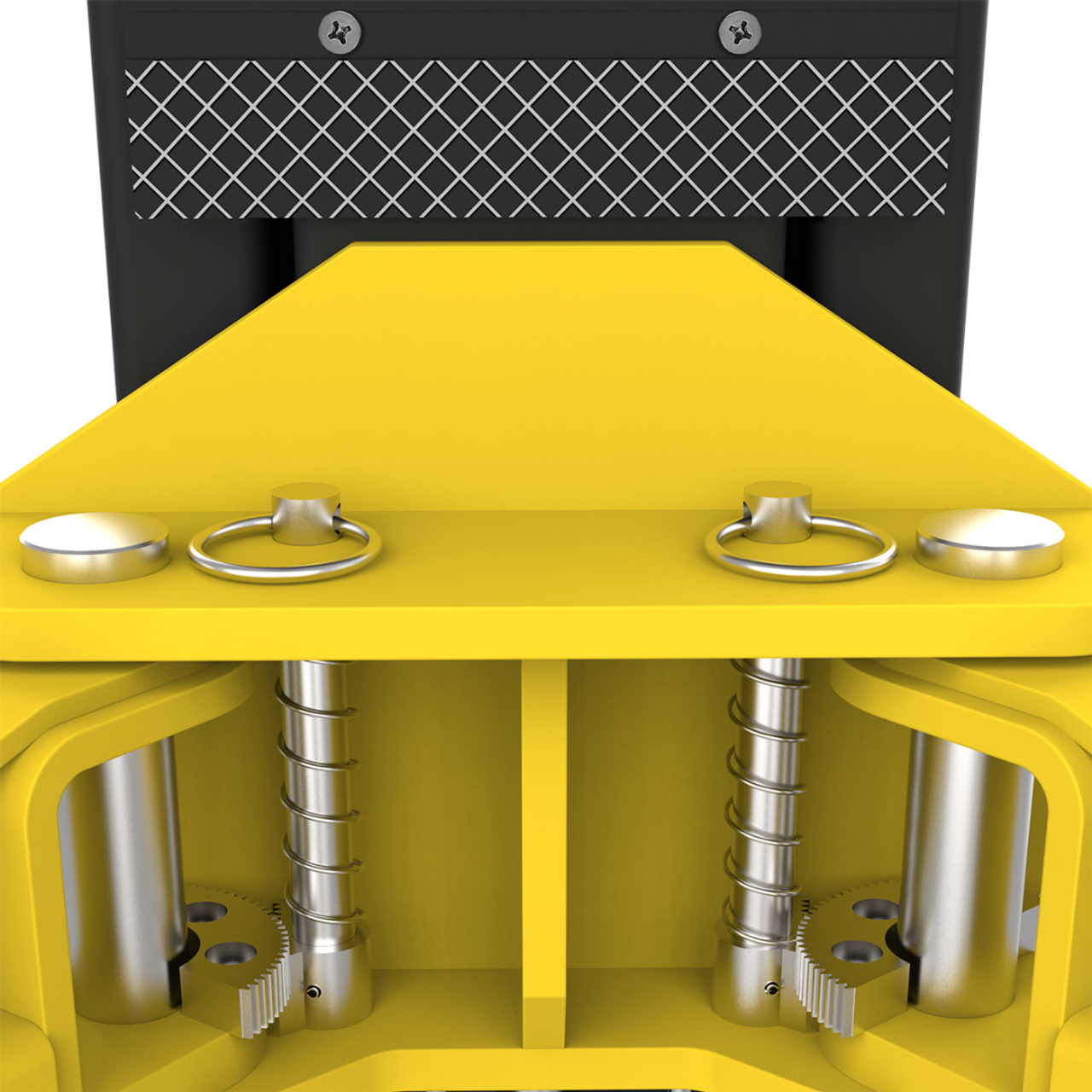

- Automatic arm restraints for enhanced safety.
- Heavy-duty 1/2″ aircraft-quality equalizer cables.
- Oversized cable sheaves to reduce cable fatigue.
- Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability.

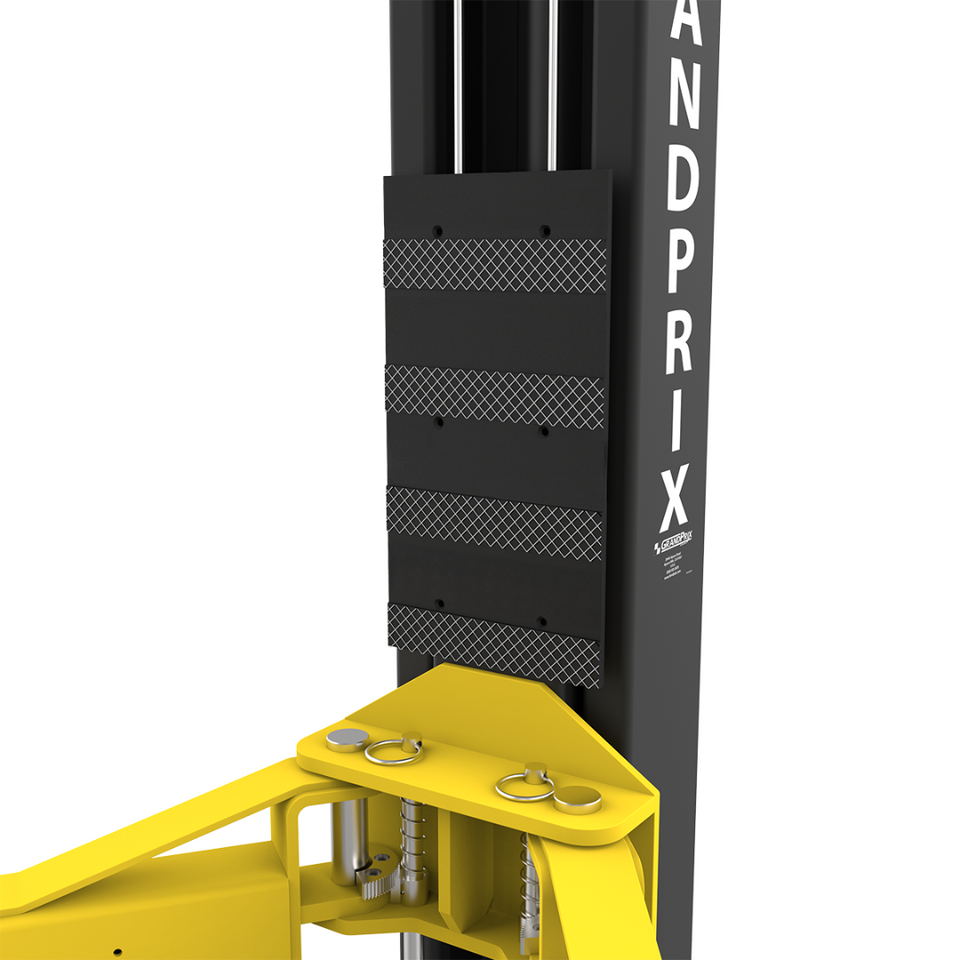

- Full size rubber carriage guard reduces door dings.
- 4-piece 63mm stackable adapter set included.
- 10-piece concrete wedge anchors included.
Specifications
| Lifting Capacity |
9,000 lbs. (4,082 kg) |
| Max. Capacity / Front Axle |
4,500 lbs. (2,045 kg) |
| Max. Capacity / Rear Axle |
4,500 lbs. (2,045 kg) |
| A – Height Overall |
109.5″ (2,781 mm) |
| B – Width Overall (at Baseplate) |
137.25″ (3,486 mm) |
| C – Width Outside of Columns |
127.5″ (3,238 mm) |
| D – Floor To Drive-over Height |
1.25″ (30 mm) |
| E – Width Inside Columns |
113.5″ (2,880 mm) |
| F – Front Arm Reach (Min.) |
22.5″ (571 mm) |
| F – Front Arm Reach (Max.) |
43.25″ (1,099 mm) |
| G – Rear Arm Reach (Min.) |
33.5″ (845 mm) |
| G – Rear Arm Reach (Max.) |
53.25″ (1,353 mm) |
| H – Min. Pad Height |
3.9″ (100 mm) |
| I – Rise |
70″ (1,778 mm) |
| J – Max. Lift Height (Pad + 63mm Adapt.) |
76.5″ – 78.5″ (1,943 – 1,994 mm) |
| K – Drive-Thru Clearance |
103″ (2,618 mm) |
| Screw Pad Adjustment |
2″ (51 mm) |
| Motor |
220 VAC / 60Hz / 1 Ph |
| Time of Full Rise |
65 seconds |
| Max. Load Per Arm |
2,250 lbs. (1,023 kg) |
| Shipping Weight |
1,385 lbs. (630 kg) |
|
